Pressure Regulator

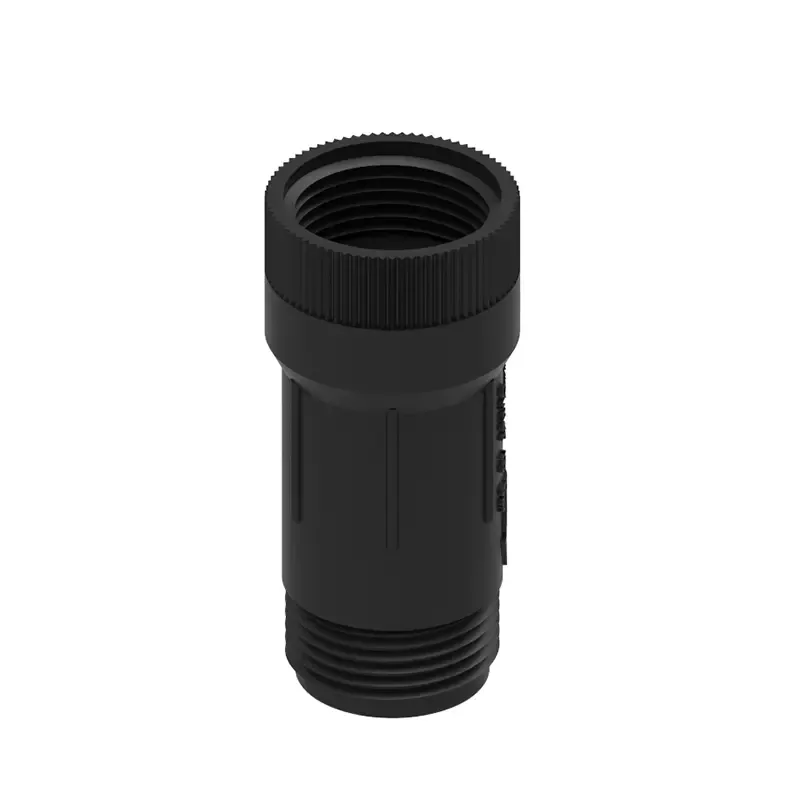

Pressure regulator

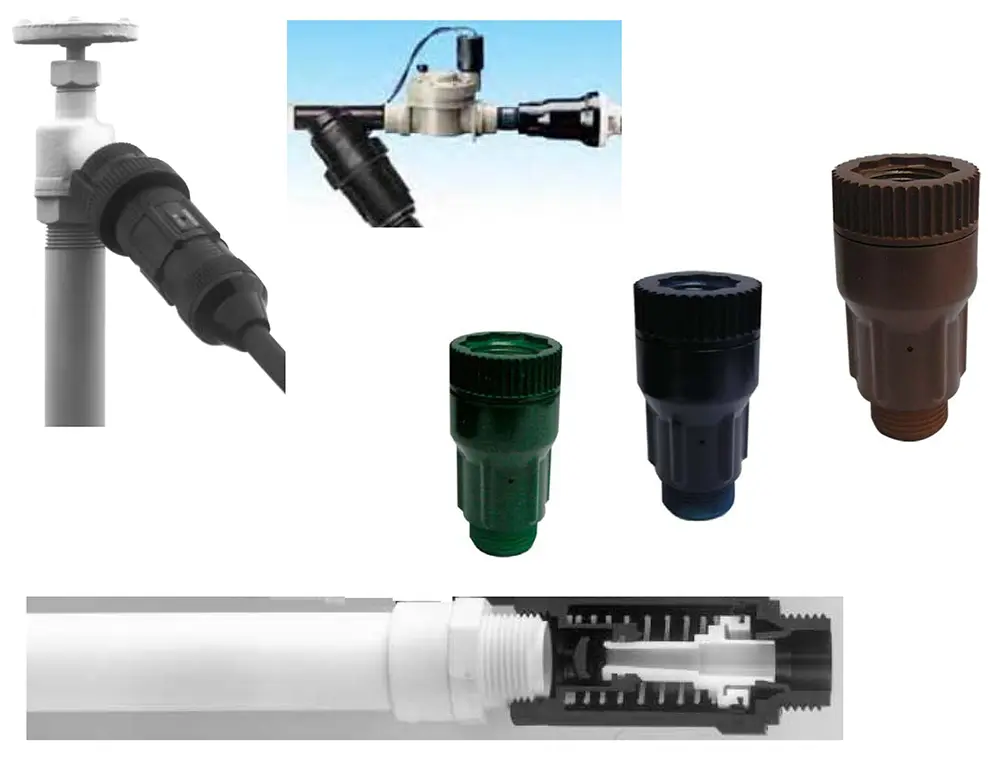

Pressure regulator is suitable for both indoor and outdoor 13mm/19mm/25mm irrigation systems, its primary function is to stabilize water pressure and flow by regulating varying inlet pressures, ensuring consistent output for end-point drip irrigation, sprinkler systems, and other low-flow irrigation applications. It is compatible with all types of drip irrigation, low-flow systems, and mobile sprinkler machines, making it ideal for water-saving irrigation setups.

PRESSURE REGULATORS

The PRESSURE REGULATORS is ideal for installations requiring lower flows including solid-set, drip

or other low-volume irrigation systems as well ascent pivot and other mechanical-move irrigation systems.

FEATURES

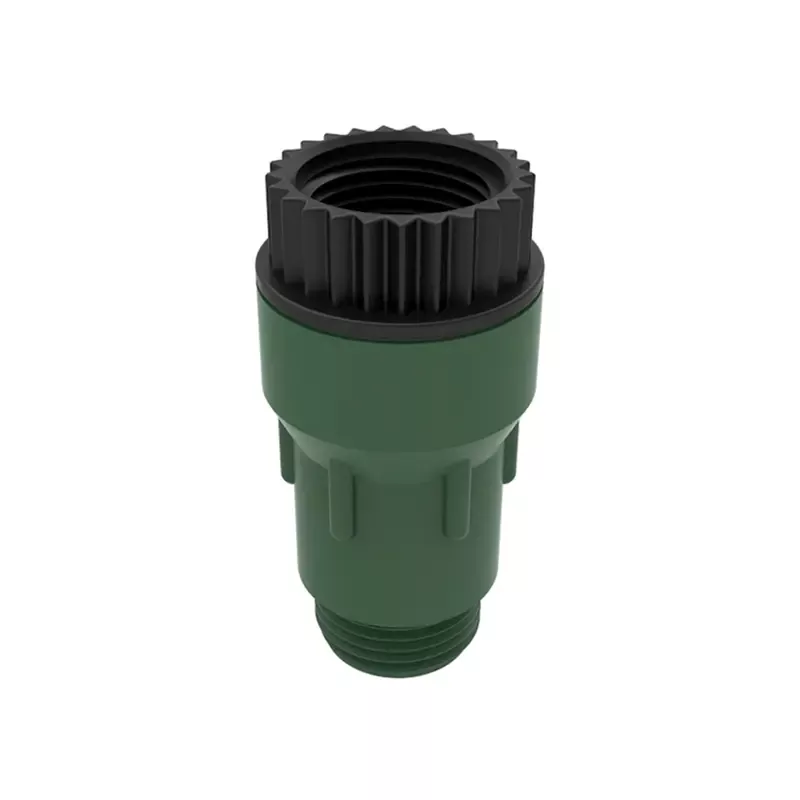

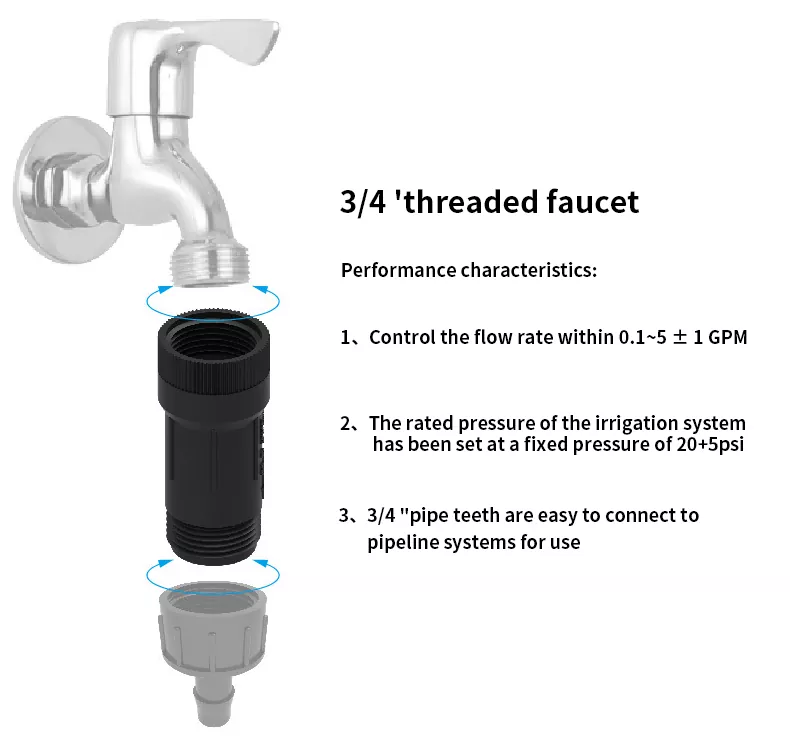

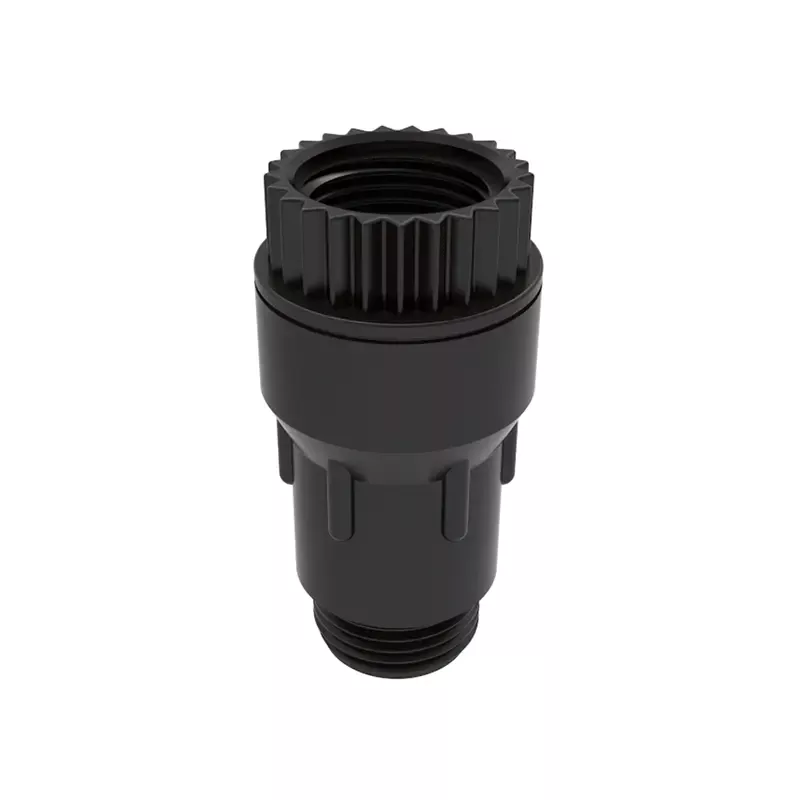

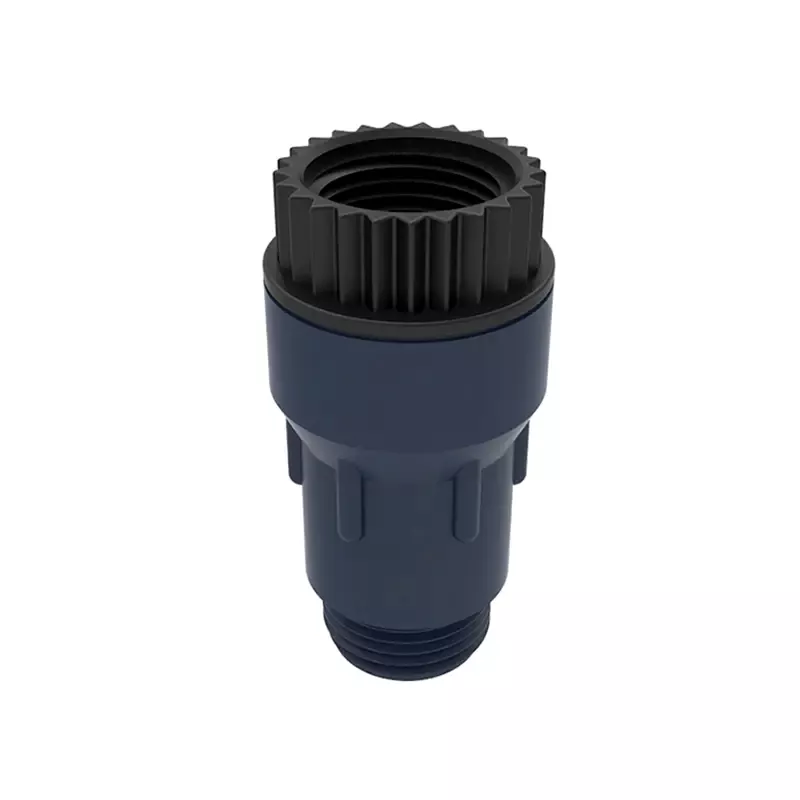

◆ #5563 series achieved Lower flows at 0.1 - 8.0 GPM.

- Female Inlet size: 3/4" NH, 3/4" NPT, 3/4" BSP, 3/4" BSP Pipe thread

- Male Outlet size: 3/4" NH, 3/4" NPT, 3/4" BSP, 3/4" BSP Pipe thread

◆ #5564 Series achieved Middle lower flows at 0.5 - 12 GPM.

- Female Inlet size: 3/4" NH, 3/4" NPT, 3/4" BSP, 3/4" BSP Pipe thread

- Male Outlet size: 3/4" NH, 3/4" NPT, 3/4" BSP, 3/4" BSP Pipe thread

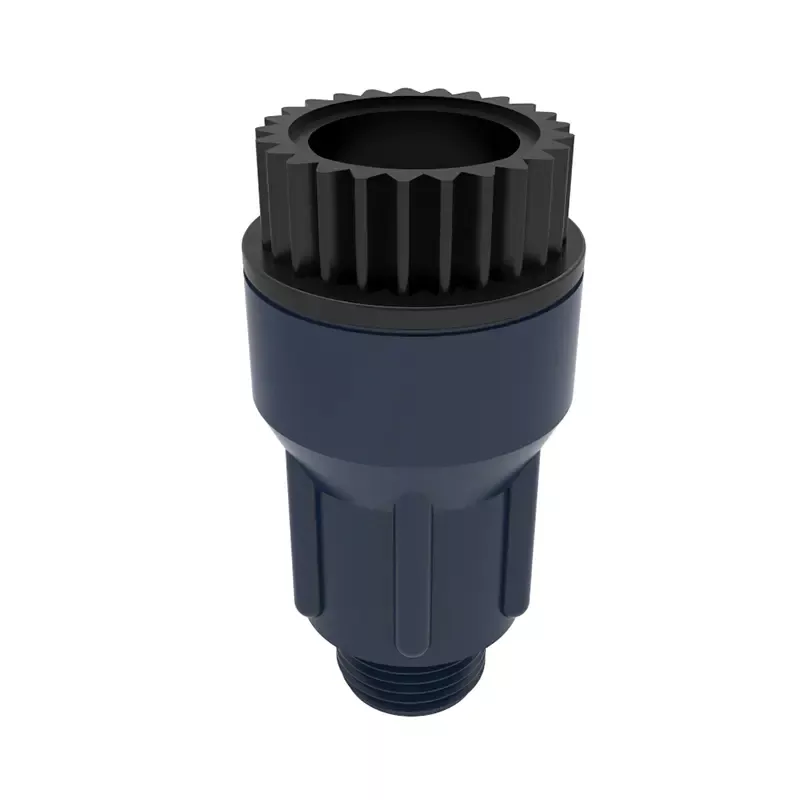

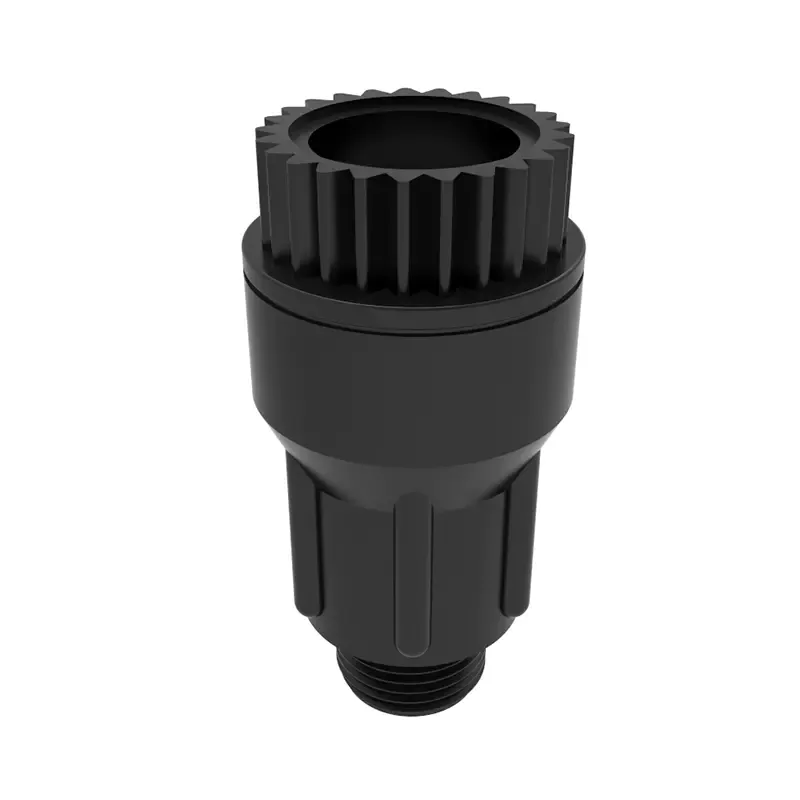

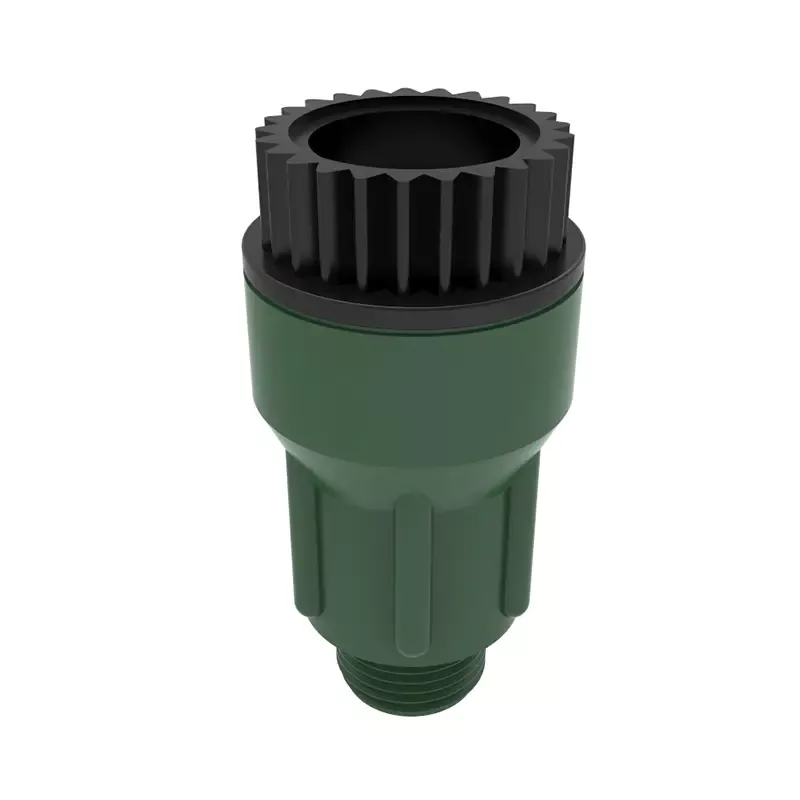

◆ #5565 Series achieved Medium flows at 2 - 20 GPM.

- Female Inlet size: 1" NH, 1" NPT, 1" BSP, 1" BSP Pipe thread

- Male Outlet size: 1" NH, 1" NPT, 1" BSP, 1" BSP Pipe thread

◆ Preset outlet pressure at 15, 20, 25, and 30 PSI.

◆ A variety of thread for more choice.

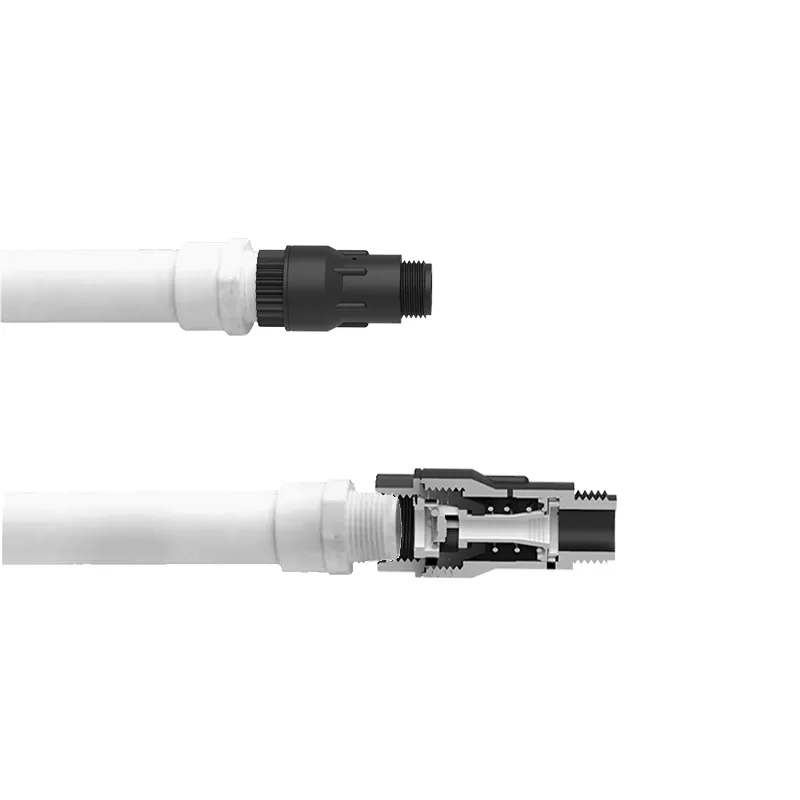

◆ Maintains a constant preset outlet pressure while handling varying inlet pressures

◆ Built for strength and durability using high-impact engineering-grade thermoplastics

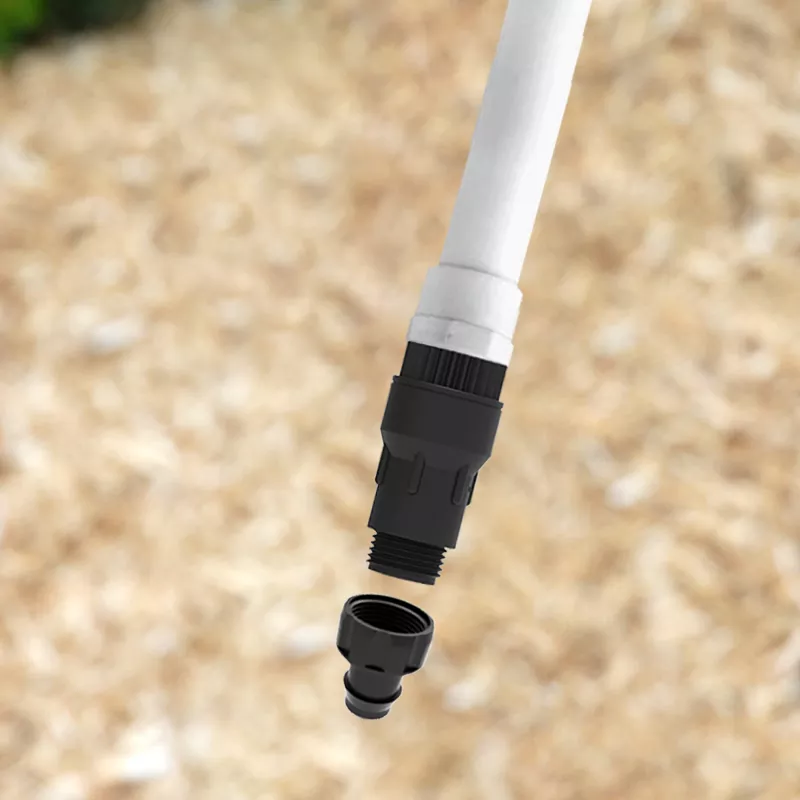

◆ Easy to assemble with garden watering system.

APPLICATIONS

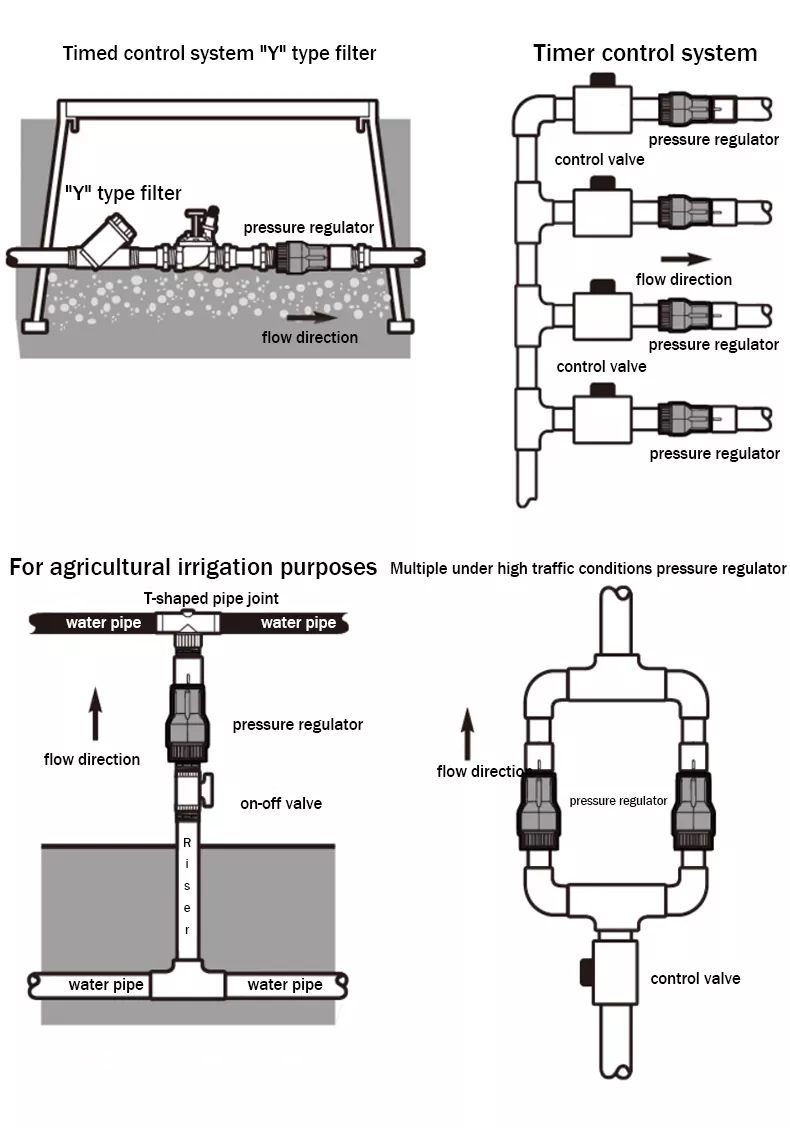

Suitable for Turf irrigation systems, Drip and low flow irrigation systems, Center pivot

spray/sprinklers, Commercial/ Residential, and Growers/Greenhouses.
