G Frame Nozzle

The G Frame nozzle is a multifunctional irrigation device specially designed by MMIP manufacturer for garden, lawn and farmland irrigation scenarios. Its core advantages lie in flexible adaptation and precise control. It breaks through the limitation of the single function of traditional sprinklers. Through the design of interchangeable spray modes, users can easily switch the appropriate water output effect according to the water requirements of different green plants, achieving customized irrigation coverage.

In terms of structural design, the G Frame nozzle takes into account both stability and practicality, the built-in flow control valve can precisely adjust the water output intensity and spray range, avoiding water resource waste; Equipped with sturdy connecting nails, it can be directly inserted into the soil for fixation, ensuring stable positioning during use. Moreover, by raising the spraying height, the water flow coverage becomes more uniform, fundamentally enhancing the irrigation efficiency. Whether it is for the irrigation of greenery in family residences or for replenishing water for crops in agricultural production, it can precisely meet the demands.

Product advantages

Unlike fixed-mode sprinklers, the G-type sprinkler adopts an interchangeable spray mode design, without the need to replace the entire sprinkler, the water output effect can be adjusted according to the irrigation object. It can provide fine water mist for delicate flowers and plants, wide-angle spraying for large lawns, and directional water flow for farmland crops, one device can meet the different needs of gardens, lawns, and farmlands.

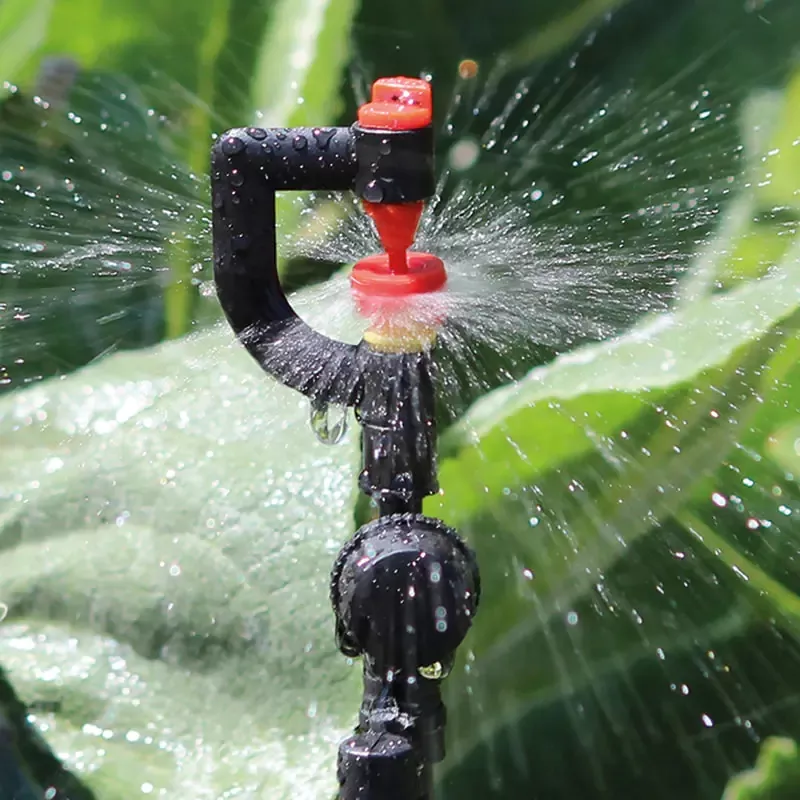

The built-in flow control valve is the core highlight, users can precisely adjust the intensity of water and the range of spray according to the size of the green plants and the dryness or wetness of the soil. This can prevent the seedlings from being washed by excessive water flow and also avoid the waste of water resources due to excessive spray, every drop of water is used where it is most needed, and even beginners can easily master the precise irrigation skills.

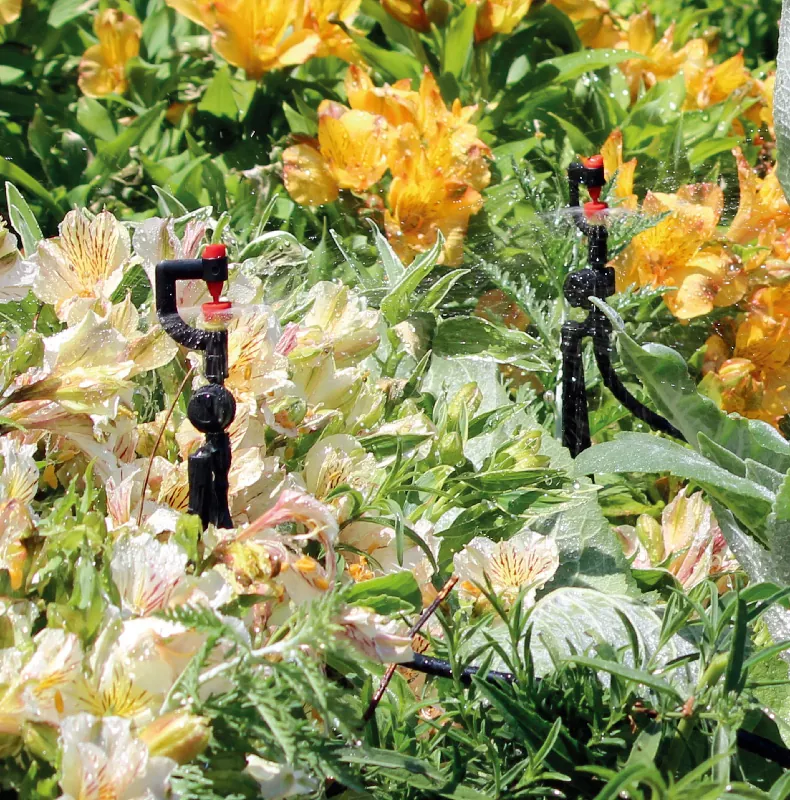

The sturdy connecting nails equipped are designed for practical use, once inserted into the soil, they can firmly fix the nozzle and prevent it from shifting due to wind or water flow impact. Meanwhile, the elevated spraying Angle enables the water flow to pass over the surface layer of the vegetation and evenly cover the root area, reducing water evaporation and significantly enhancing irrigation efficiency, eliminating the need for repeated position adjustments and supplementary watering.

The G Frame nozzle is made of durable materials and can resist wind and rain erosion even when exposed outdoors for a long time, ensuring a guaranteed service life. It does not require complex installation in operation, whether it is an ordinary household user taking care of the courtyard or an agricultural worker looking after the farmland, it can be quickly mastered and perfectly meets the dual irrigation needs of residential and agricultural areas.

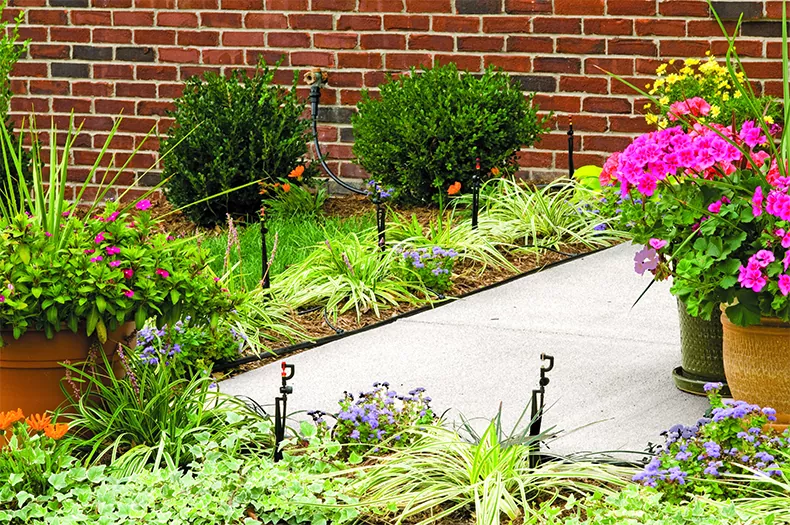

The G-Frame Nozzle by MMIP is a versatile irrigation solution designed for gardens, lawns, and farmlands. Its interchangeable spray patterns allow users to easily switch between water effects for customized coverage. Equipped with a built in flow control valve , it enables precise adjustment of water intensity and spray range.

The nozzle features a sturdy connector spike for direct insertion into soil, ensuring stable positioning and elevated spraying to maximize irrigation efficiency, durable and user friendly, the G-Frame Nozzle is ideal for both residential and agricultural watering needs.

Product Parameter (Specification)

Photo			Item#	DESCRIPTION	Feature point	L	W	H	U/weight (g)	PKG	Inner	Outer	CUFT

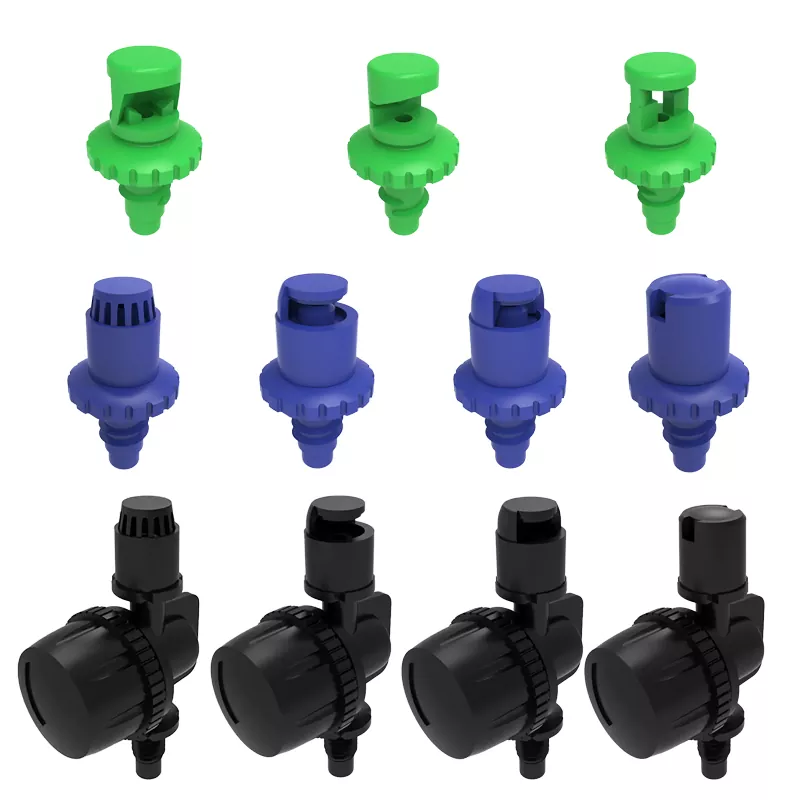

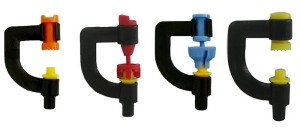

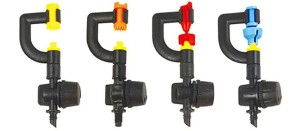

			5411	G- FRAME 360 DEG. MIST / DOWN MIST HEADS	The G-FRAME SPRAYERS is micro mist sprayer, a switch system on. Move units around to get the required coverage or swop the different heads to suit spray patterns. FEATURES 1.Replacement heads for difference pattern and easy installation. 2.No tools required. 3.Choice of six spray patterns – Spinner, 180° Mist & 360° Anti-Bug Spinner, Strip spray & 360° Stream , 360° Down mist & Flat mist. 4.There are 0.9mm, 1.0mm,1.1mm, 1.2mm and 1.5mm nozzles ready for meet special flow rate needed, standard offer is 1.2mm. APPLICATIONS Suitable for large flower beds, fruit , vegetable patches, home and landscaped gardens and horticultural applications.	11	2	12	3.0	Bulk	100	3000	1.38

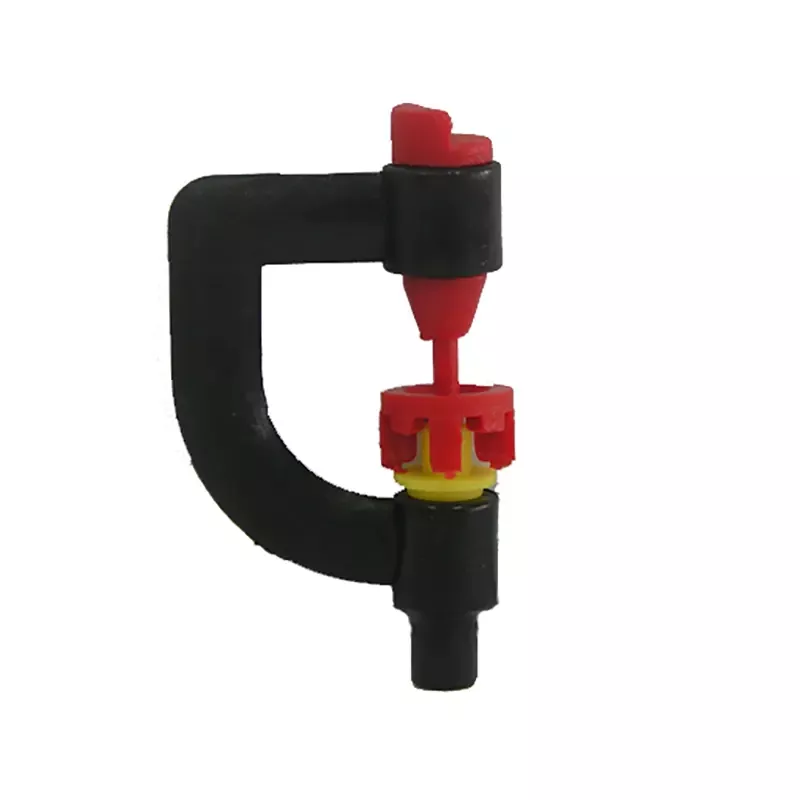

			5412	G- FRAME ANTI-BUG SPINNER/180 DEG. MIST HEADS		11	2	12	4.0	Bulk	100	3000	1.38
			5414	G-FRAME STREAMER / STRIP SPRAY HEADS		11	2	12	3.0	Bulk	100	3000	1.38
			5415	G. P. SPINNER HEADS ONLY		11	2	12	4.0	Bulk	100	3000	1.38

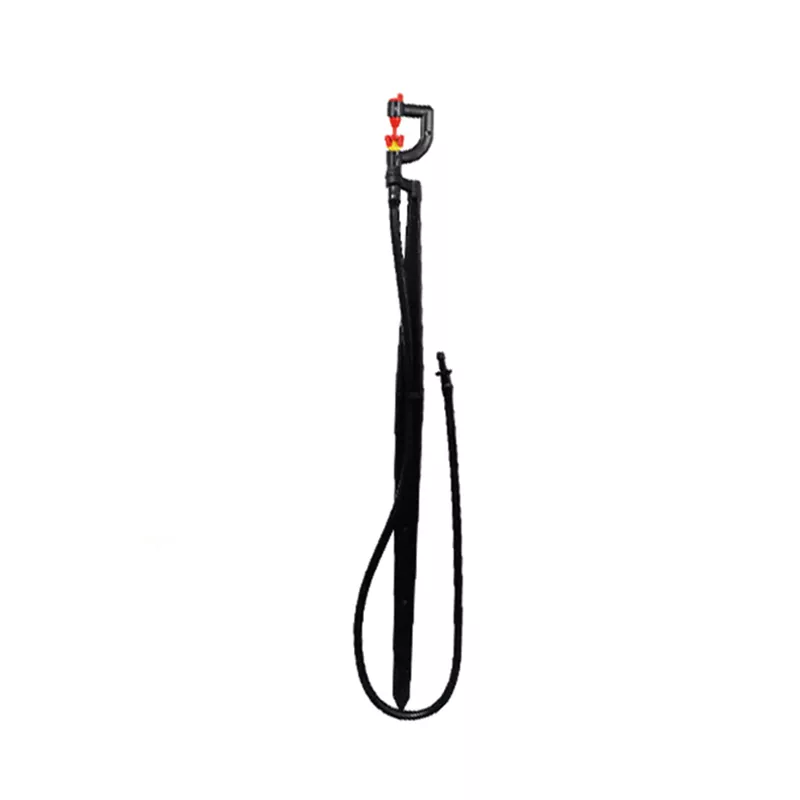

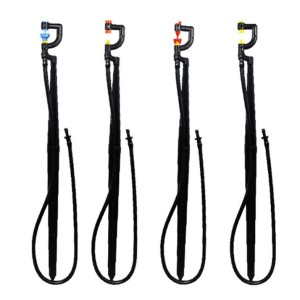

			5332	G- Frame Anti-Bug Spinner/180 Deg. Mist 300mm Spike Complete Assembly		11	2	35	22.0	Bulk	25	600	2.38
			5333	G- 360 Deg./Done Mist 300mm Spike Complete Assembly		11	2	35	22.0	Bulk	25	600	2.38
			5334	G- Strip/Steamer Spray 300mm Spike Complete Assembly		11	2	35	22.0	Bulk	25	600	2.38

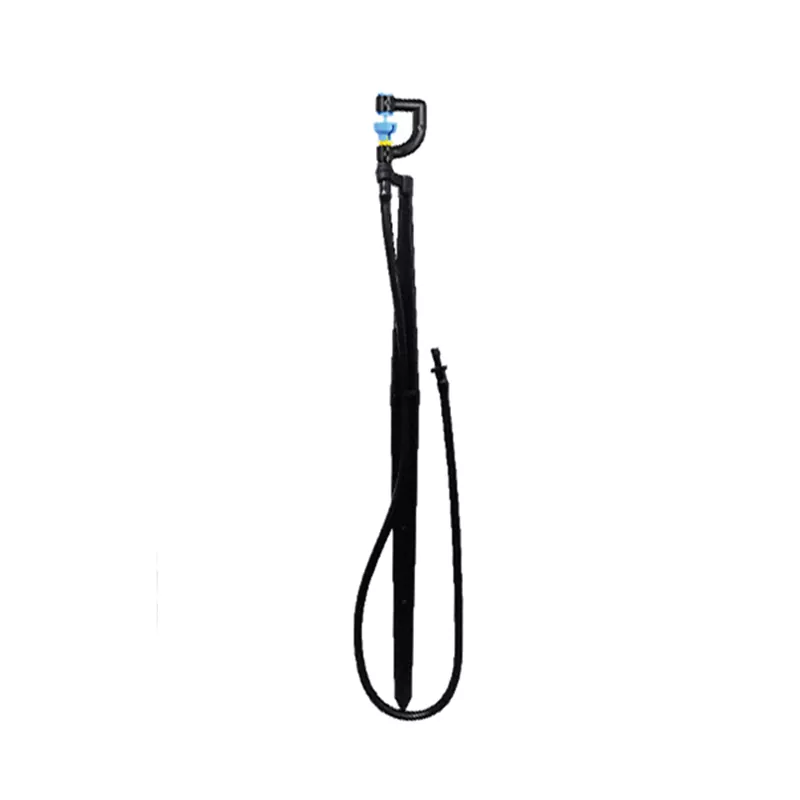

			5335	GP Spinner 300mm Spike Complete Assembly		11	2	35	22.0	Bulk	25	600	2.38

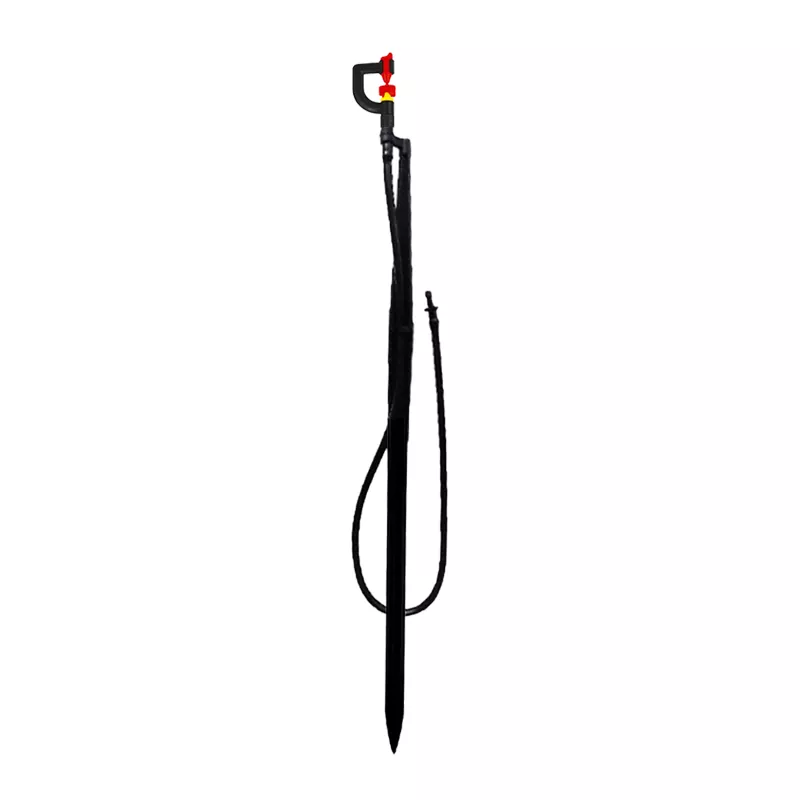

			5312	G- Frame Anti-Bug Spinner/180 Deg. Mist 500mm Spike Complete Assembly		11	2	55	40.0	Bulk	25	400	2.9

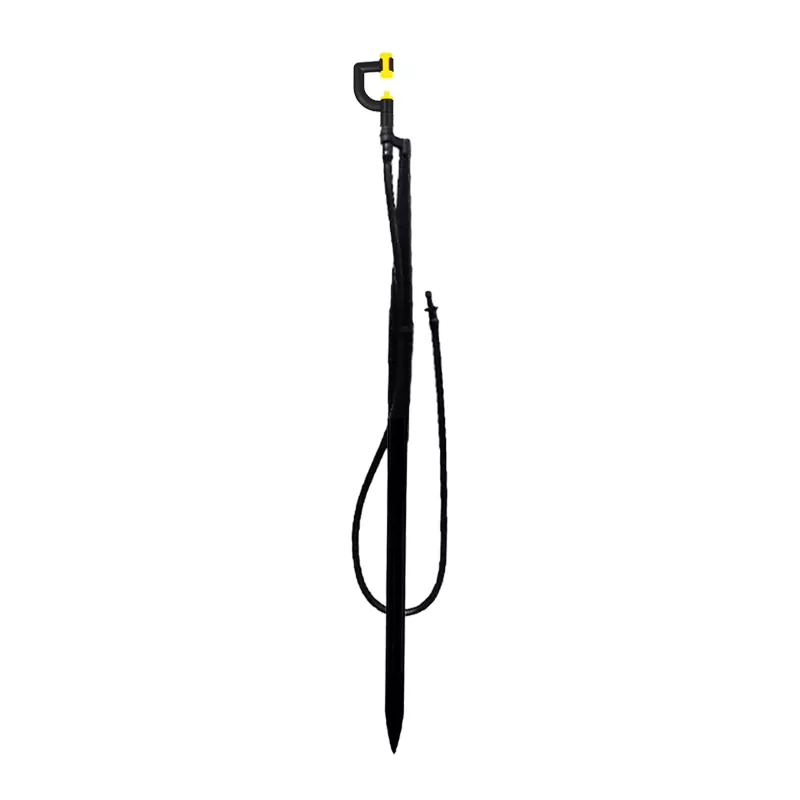

			5313	G- 360 Deg./Done Mist 500mm Spike Complete Assembly		11	2	55	40.0	Bulk	25	400	2.9
			5314	G- Strip/Steamer Spray 500mm Spike Complete Assembly		11	2	55	40.0	Bulk	25	400	2.9
			5322	GP Spinner 500mm Spike Complete Assembly		11	2	55	40.0	Bulk	25	400	2.9
			5413	Vari-Rotor spray		11	2	12	6.0	Bulk	100	2000	1.38
			5418	G-frame 360 D. mist/ down mist head w/ flow controller		11	2	12	6.0	Bulk	100	2000	1.38
			5419	G-frame anti-bug spinner/ 180d. Mist head w/ flow controller		11	2	12	6.0	Bulk	100	2000	1.38
			5420	G-frame streamer /strip spray head w/ flow controller		11	2	12	6.0	Bulk	100	2000	1.38

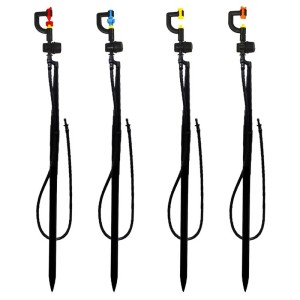

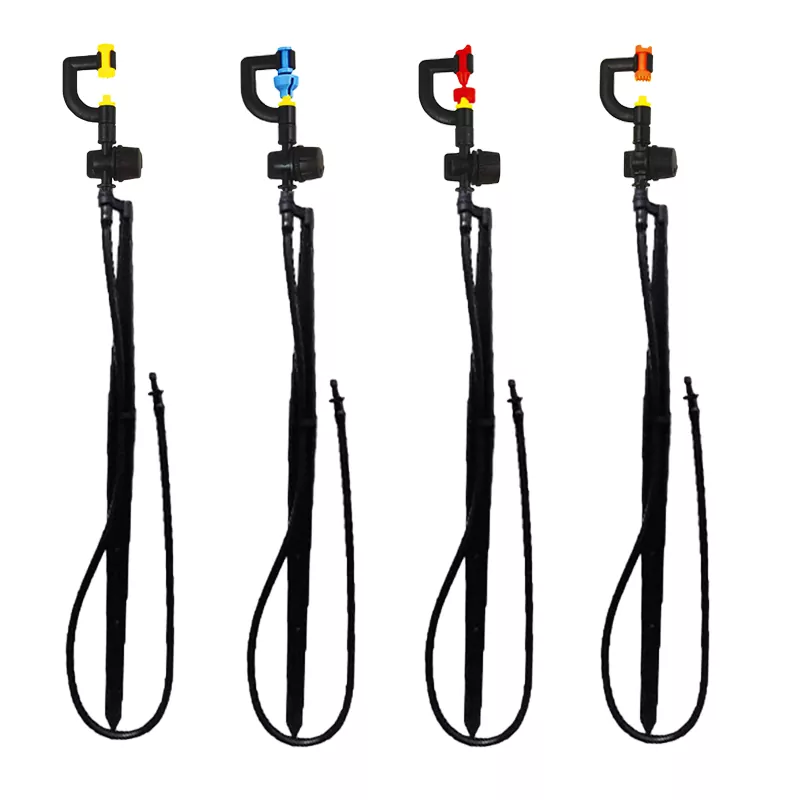

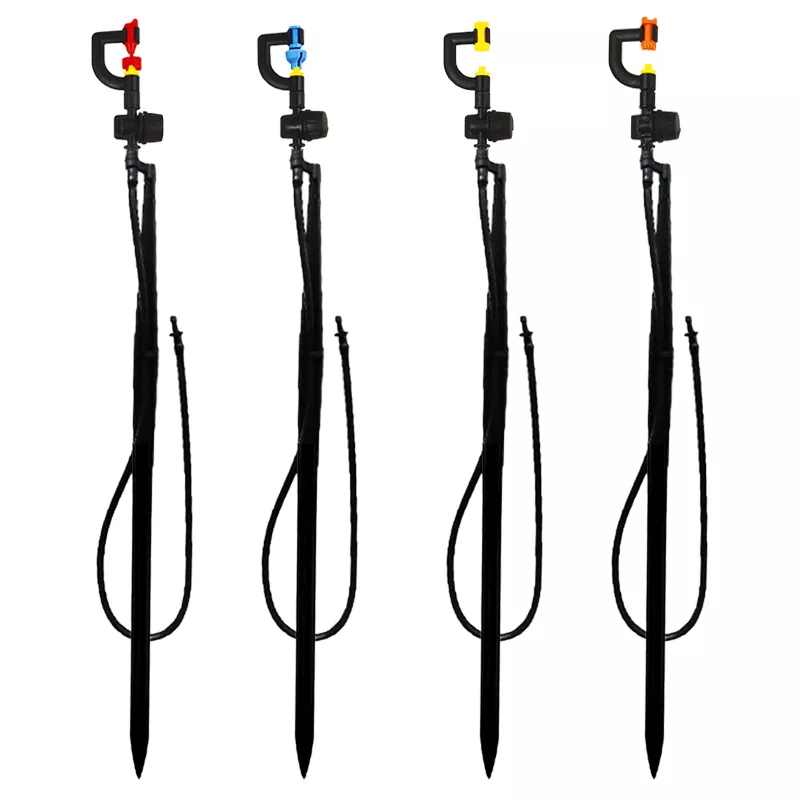

			5340	G- Frame Anti-Bug Spinner/180 Deg. Mist 300mm Spike Complete Assembly w/ Flow Controller		11	2	38	25.0	Bulk	25	600	2.38

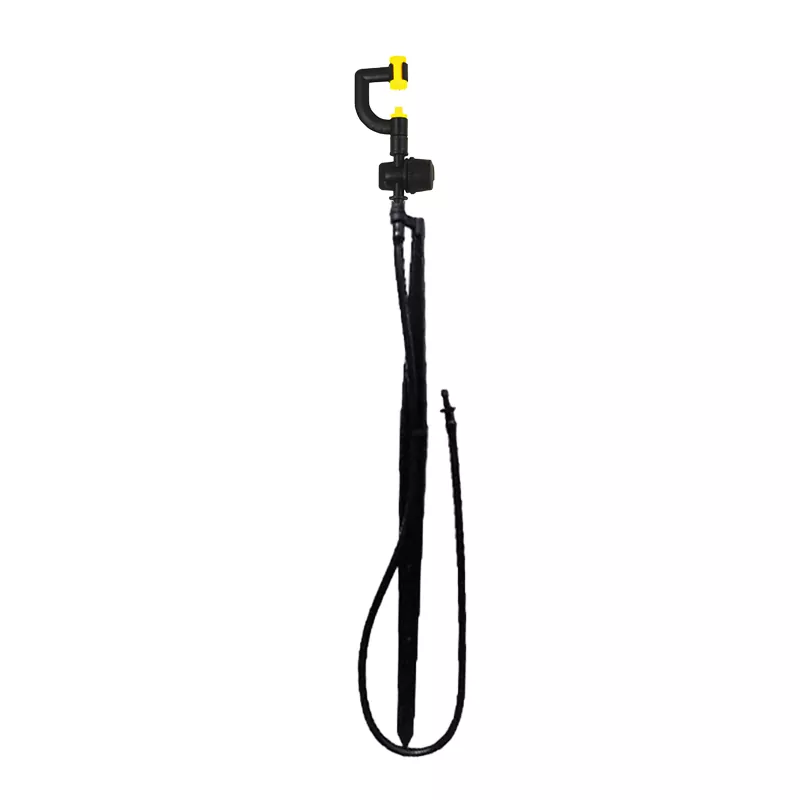

			5341	G- 360 Deg./Done Mist 300mm Spike Complete Assembly w/ Flow Controller		11	2	38	25.0	Bulk	25	600	2.38
			5342	G- Strip/Steamer Spray 300mm Spike Complete Assembly w/ Flow Controller		11	2	38	25.0	Bulk	25	600	2.38

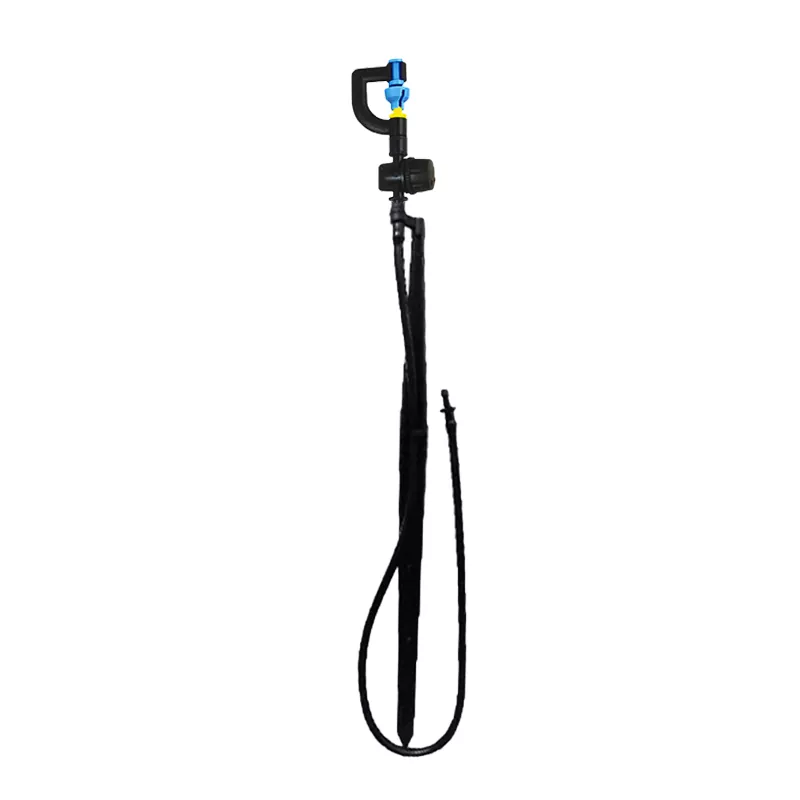

			5343	GP Spinner 300mm Spike Complete Assembly w/ Flow Controller		11	2	38	25.0	Bulk	25	600	2.38

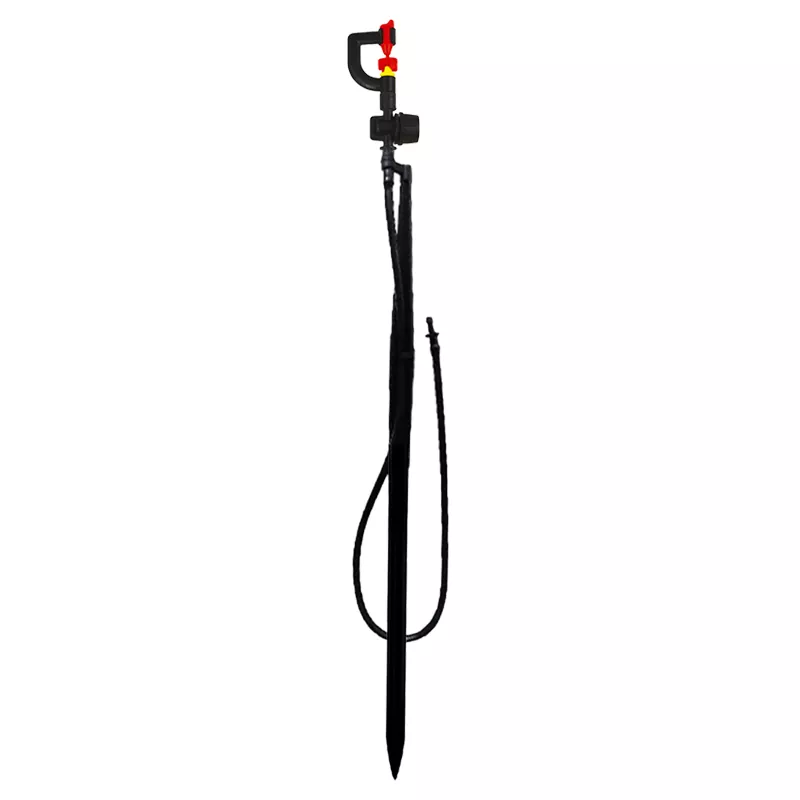

			5336	G- Frame Anti-Bug Spinner/180 Deg. Mist 500mm Spike Complete Assembly w/ Flow Controller		11	2	58	43.0	Bulk	25	400	2.9

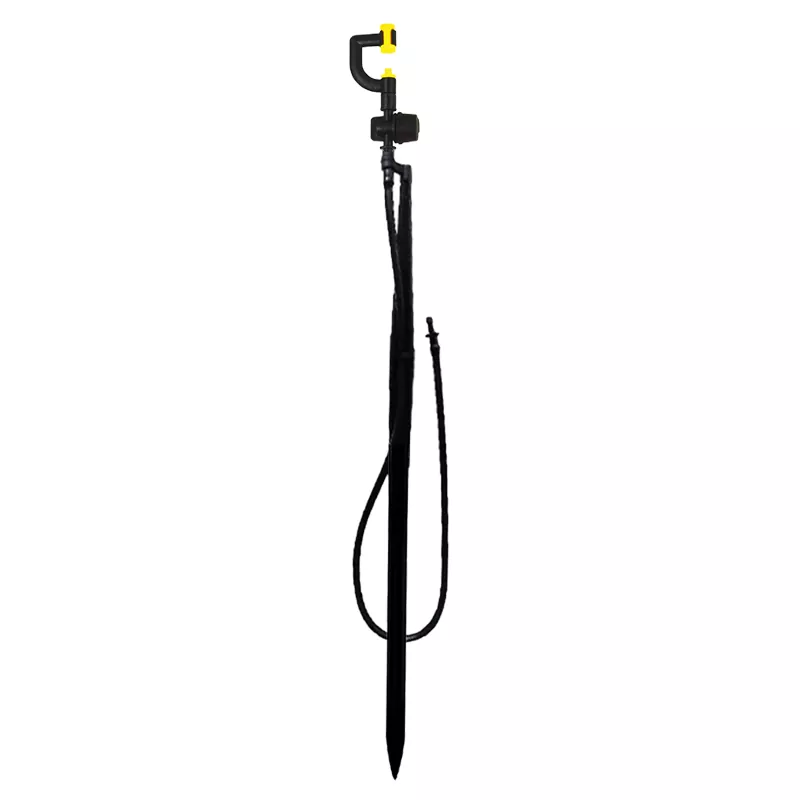

			5337	G- 360 Deg./Done Mist 500mm Spike Complete Assembly w/ Flow Controller		11	2	58	43.0	Bulk	25	400	2.9

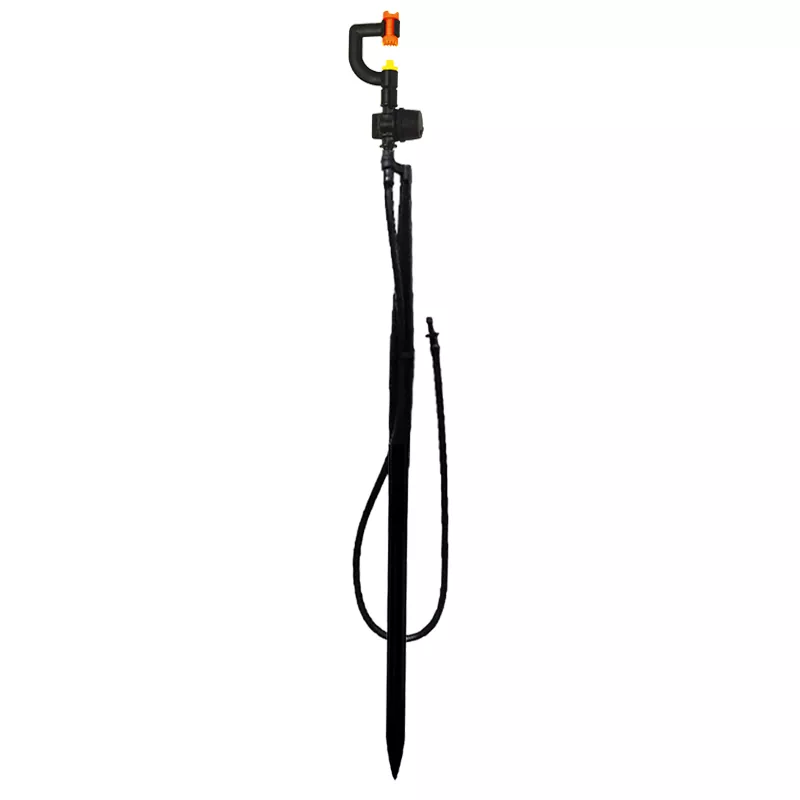

			5338	G- Strip/Steamer Spray 500mm Spike Complete Assembly w/ Flow Controller		11	2	58	43.0	Bulk	25	400	2.9

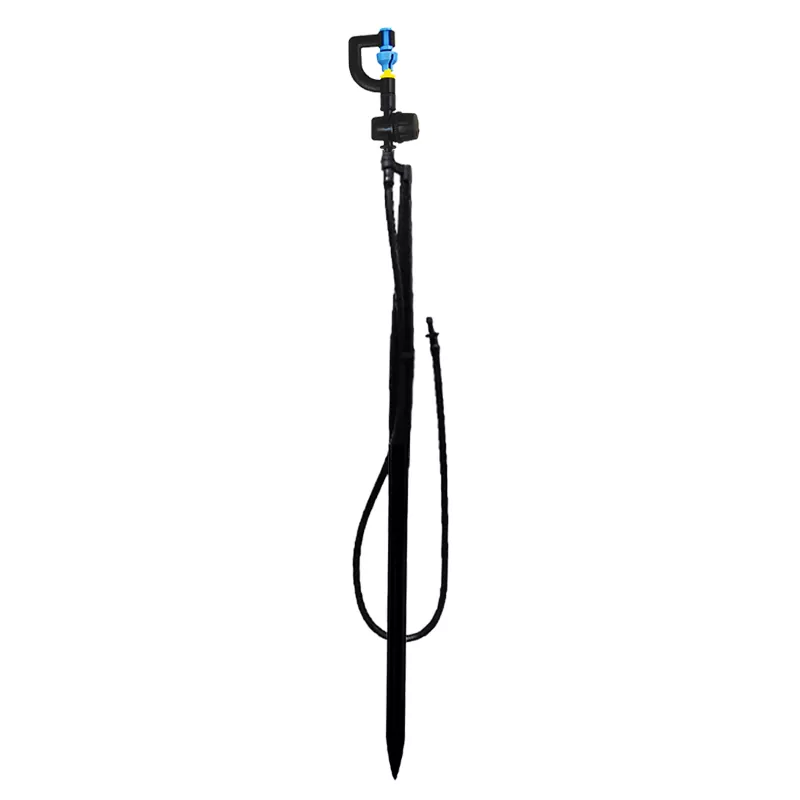

			5339	GP Spinner 500mm Spike Complete Assembly w/ Flow Controller		11	2	58	43.0	Bulk	25	400	2.9

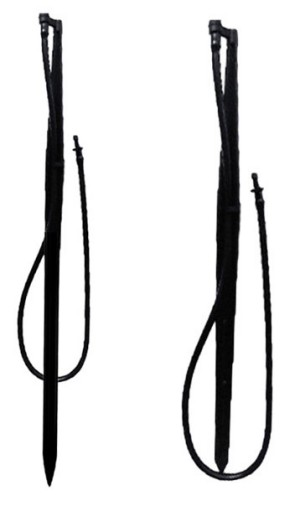

			5471S	500MM SUPPORT PEG w/0.5M tubing						Bulk	25	400	2.9
			5472S	300MM SUPPORT PEG w/0.5M tubing						Bulk	25	600	2.38
