Rain Gauge

All Rain Gauge components madefrom UV stabilised

plastics for durabiliity.

Funnel catches a largersurface area of rainfall.

Mounting Bracket screw to post.Gaugeis easily removed frombracket for checkingmeasurements.

HOW A product OPERATES

Your Professional Rain Gauge measures rainfall in millimetresover a set period, usually 24 hours. Just like commercial rain gauges,it has a housing (outer cylinder) to protect the measuring cylinderinside. The top of the gauge or funnel, has a larger surface areathan the top of the measuring cylinder. The extra rainwatercollected makes it easier to read the measuring cylinder andimproves accuracy.

DESCRIPTION:

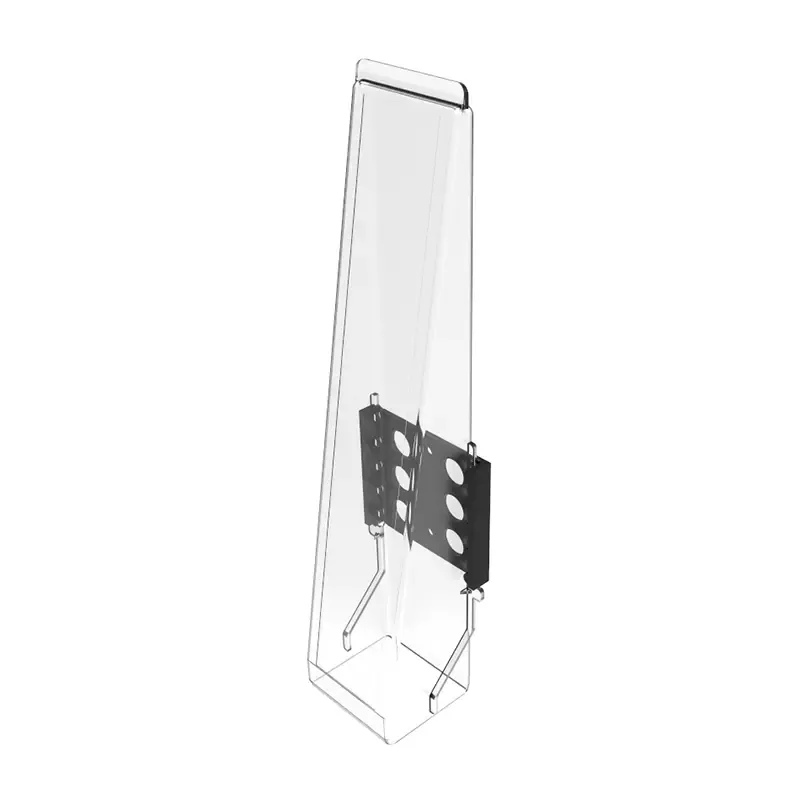

Backyard Rain Gauge 150mm Wedge

Installing your Rain Gauge Wedge.

Attach the rain gauge to a post in a safe, runoff-free location. Ensure it'sat least twice the height of the nearest structure away. For best results.keep the gauge straight, vertical, and close to the ground.

Recording rainfall:

Record the rain gauge results at the same time daily. Read from thebase of the meniscus at eve level. For accuracy, install two gauges sixmeters apart and average the readings to minimise wind effects

◆ CATCHES UP TO

150mm of rainfall

◆ EASY TO READ INCREMENTS

◆ LARGE OPENING

for improved rainfall catchment

◆ INCLUDES RAINFALL CHART

◆ REMOVABLE FROM BRACKETfor

checking gauge measurements

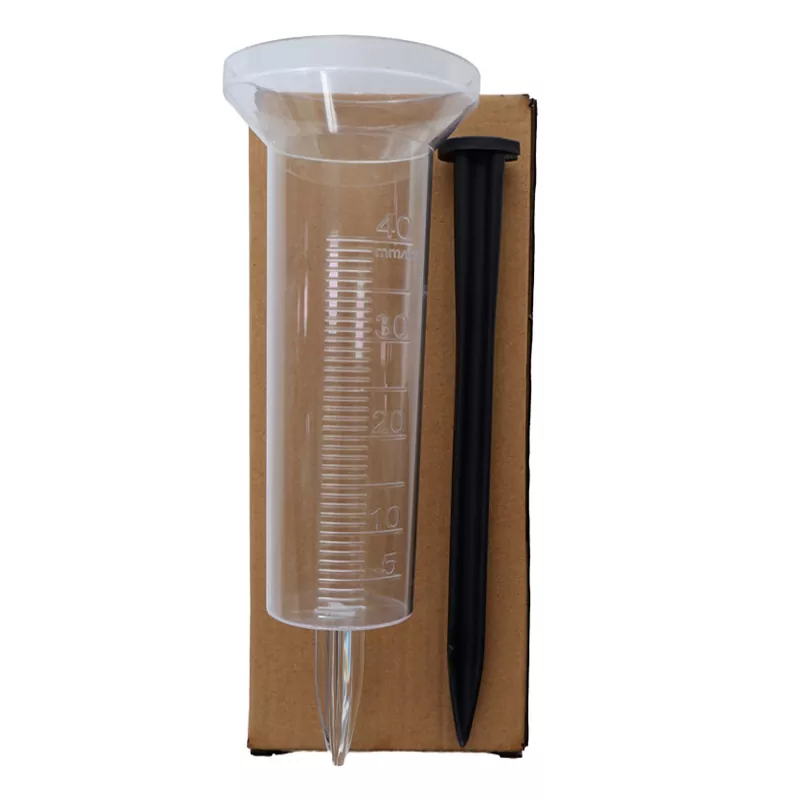

ain Gauge 40mm Wedge with 210mm Extension Stakes: The rain gauge can be inserted directly into the soil or elevated using the extension stakes to increase its height.Real time observation and periodic rainfall recording are required.

The rain gauge can be inserted into the soil at the lower end, requiring real-time observation rainfall data recording, with a maximum scale marking of 120mm.

Product Parameter (Specification)


Item#

DESCRIPTION

Feature point

L

W

H

U/weight (g)

PKG

Inner

Outer

CUFT

Place of Origin:

1625

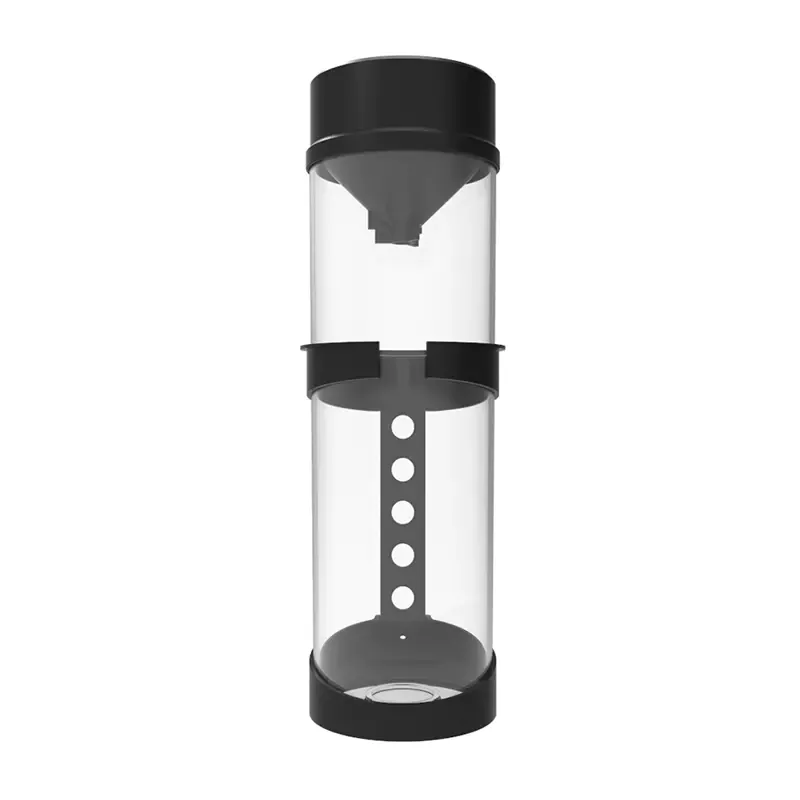

Professional Rain Gauge 250mm Dbl Cyl

ox

24

5.3

Qingdao, China

1626

Backyard Rain Gauge 150mm Wedge

Blister

6

24

2.46

Qingdao, China

1627- 1

Rain Gauge 40mm Wedge with 1 x SH2720 210mm Extension Stakes

Blister card

12

48

1.60

Qingdao, China

1628

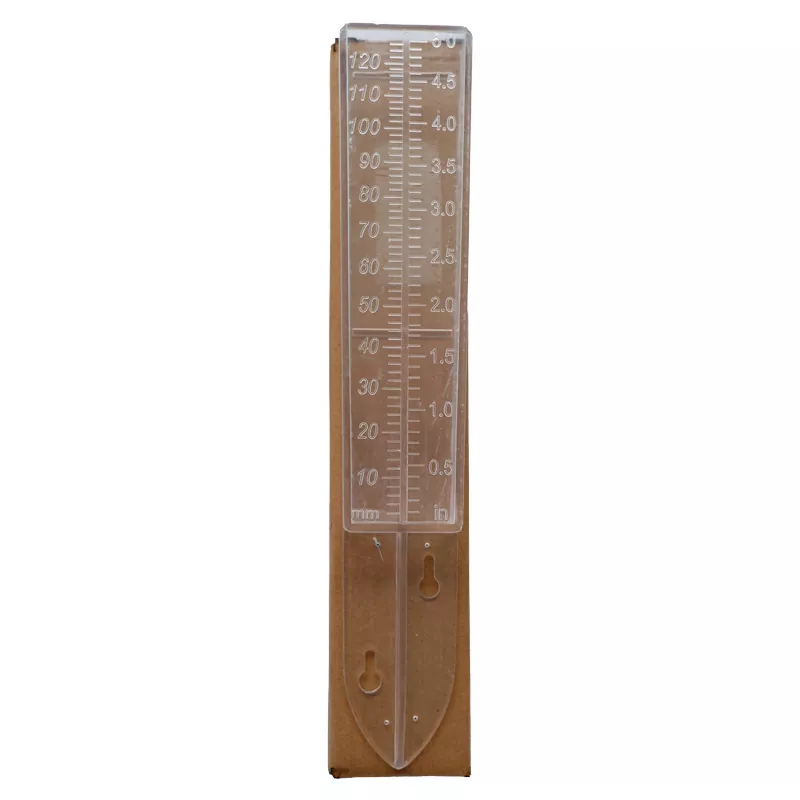

Rain Gauge 120mm Wedge

Blister card

12

48

1.33

Qingdao, China
